Product Description

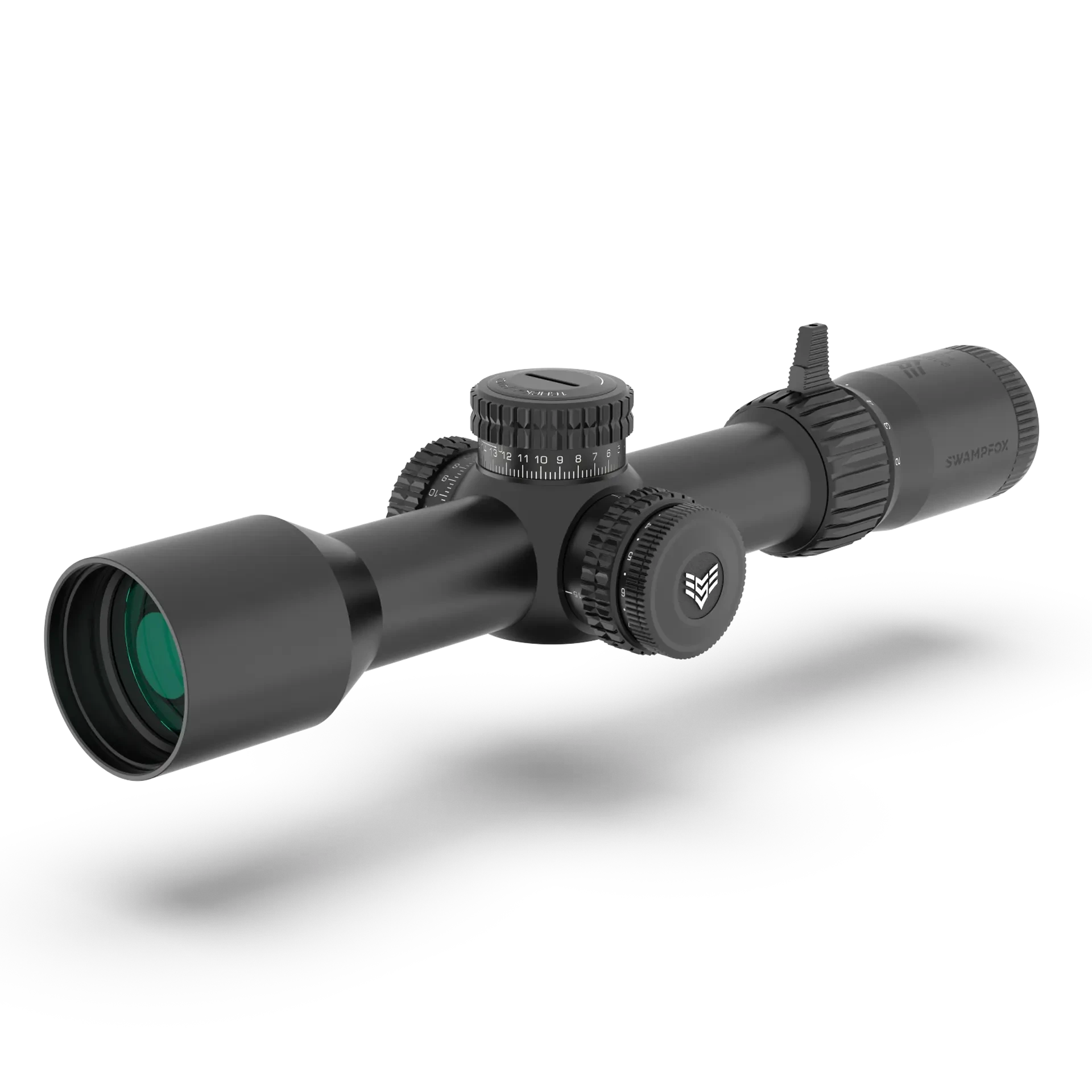

The Warhawk is Swampfox Optics’ latest high magnification precision rifle scope series, featuring crystal clear glass, tough construction, and intelligent FFP Sharpshooter reticles. Standout features include a 34mm main tube, superior field of view, and night vision compatible reticle illumination. The Warhawk incorporates user friendly zero-resettable, locking target turrets, side-mounted parallax and reticle illumination adjustments, and a fast focus eyepiece to always keep the reticle sharp.
[tab]
The Apex Predator
Warhawk is our top of the line, flagship precision rifle optic. The 34mm tube is filled with premium glass treated with the latest coatings for a truly superior sight picture. The 5x erector ratio provides excellent magnification flexibility, so your rifle is ready for a wide variety of shooting situations. From the night vision compatible reticle illumination to the upgraded locking turrets, Warhawk makes no excuses and takes no prisoners.
TAKE FULL CONTROL
Warhawk features our most advanced reticle illumination configuration. 2 night vision compatible settings are followed by 10 visible red illumination settings, with an “off” detent in between each brightness level. You have the power to continue taking precision shots in a variety of low light situations, or to place a night vision optic behind your Warhawk and pursue your targets in the dead of night.
MATHEMATICS, WEAPONIZED
Warhawk features our proven, intelligent first focal plane Sharpshooter holdover grid reticles. Choose between MOA or MIL/MRAD versions matched with 0.25 MOA-per-click or 0.1 MRAD-per-click locking turrets. Sharpshooter reticles are compatible with any caliber, easy to navigate, and provide all the data needed to perform advanced holdover and ranging techniques.
WE THOUGHT OF THAT ALREADY
We don’t nickel-and-dime you to death selling you the accessories and extras you need to get kitted out. Every Warhawk comes with high and low profile magnification throw fins, high quality flip caps, and a sun shade already in the box and ready to go. No need to worry about aftermarket compatibility or shopping for upgrades. The Honeycomb Anti-Reflection device? You guessed it-- already included in the box.
Superior Optical Performance
Warhawk’s 34mm main tube combines with larger objective lenses and our latest in glass and coatings technology to absolutely pour light into your eye and provide a flexible, comfortable, easy to use optic in any lighting condition or tactical situation.
KEEPING IT CRISP
Warhawk’s fast focus ocular lens keeps the reticle sharp for your exact eye, while the side focus parallax adjustment knob eliminates accuracy-robbing parallax issues and keeps the target area in perfect focus.
ZOOM RATIO & EYE RELIEF
Warhawk features plenty of eye relief so you can mount yours on heavy recoiling rifles without worry. The 5x zoom ratio and state of the art optical engineering create great flexibility for a scope that is ready to tackle a huge variety of real world shooting situations.
MASTER LEVEL EYE BOX
Warhawk features class-leading eye box characteristics. If you are constantly squirming behind the scope to get a perfect sight picture, who cares how good the glass is? Warhawk’s forgiving eye box characteristics make it easy to use at all magnifications. You should be worried about making wind calls, not about losing your view through the scope.
HIGH-CLASS GLASS
An impressive features list doesn’t mean squat if the scope has junk glass. Glass quality is the heart of a precision rifle scope. Warhawk’s excellent, rare earth mineral infused glass and state of the art scratch-resistant coatings maximize light transmission, repel water, and resist fogging. Warhawk’s glass is the foundation that helps it rise head and shoulders above the competition.
KEEP A SHARP EYE
Everyone’s eyes are different. Warhawk’s fast focus ocular lens facilitates easy adjustment to keep the reticle sharp at all magnifications for each individual shooter, whether you have perfect vision or wear thick prescription glasses.
PRECISION PARALLAX ADJUSTMENT
Warhawk’s side focus parallax adjustment knob makes eliminating accuracy-robbing parallax easy while continuously looking through the scope.
Tactical Turrets
LOCK IT DOWN
Warhawk’s precision tactical turrets feature a wide base and low profile. Pull up on the outer ring to unlock and dial with sharp, tactile and audible clicks. Push the ring back towards the scope body to securely lock down your adjustments.
RESETTABLE TURRET ZERO
Serious precision shooters know that the ability to reset turret “zero” after sight in is a must. Of course Warhawk accomplishes this task easily in a few seconds, using a coin or screwdriver.
FEEL THE QUALITY, WITNESS THE PRECISION
Warhawk’s wide turrets are easy to manipulate so you can count each sharp, tactile and audible click while looking through the scope, without having to look up and read numbers. Sharpshooter MOA reticle Warhawks use 0.25 MOA-per-click adjustments, and Sharpshooter MIL reticle Warhawks use 0.1 MIL-per-click adjustments.
SHARPSHOOTER MOA
Sharpshooter MOA is an intelligent reticle that is easy to navigate yet always precise. Easily measure the size of objects viewed through the Warhawk down to 0.5 MOA to find your distance to target, then shift your point of aim and use the 36 MOA holdover grid to compensate for range and wind.
SHARPSHOOTER MIL/MRAD
Sharpshooter MRAD is an intelligent reticle that is easy to navigate yet always precise. Easily measure the size of objects viewed through the Warhawk down to 0.1 MRAD to find your distance to target, then shift your point of aim and use the 10 MRAD holdover grid to compensate for range and wind.
TOUGH AS NAILS
Warhawk is made to the strictest standards, using the best materials available. We make them tough as hell. Warhawk is shock resistant to 1,100 Gs of shock, waterproof, sand proof, and pretty much gorilla proof. If you do somehow break yours, no worries– we’ve got your back with the Swampfox Optics 50,000 Round Guarantee.
SPECIFICATION
|
Magnification |
2-10x |
|
Tube Diameter |
34mm |
|
Objective Lens Diameter |
44mm |
|
Exit Pupil (mm) |
13mm (2x) - 3.93mm (10x) |
| Eye Relief (in) |
4.0 - 3.4" |
| FOV @ 100 Yards (ft) |
62.6' (2x) - 12.5' (10x) |
| Click Value |
0.25 MOA / 0.1 MIL |
|
Parallax Setting |
10 yds - Infinity |
|
Travel Per Rotation |
100 Clicks/ 25 MOA |
|
Max Elevation Adjustment |
120 MOA |
|
Max Windage Adjustment |
120 MOA |
|
Lens Coating |
Fully Multi-Coated/ Anti-fog/Hydrophobic |
|
Reticle |
Sharpshooter MOA / MRAD |
|
Focal Plane |
First Focal Plane |
|
Fast Focus Diopter |
Yes, -2 to +2 |
|
Turret Style |
Push/Pull Locking Turrets with Zero Reset |
|
Length |
12.72" |
|
Weight |
29.7 oz. |
|
Waterproof Rating |
IPX7 |
|
Impact Resistance |
1,100 G Forces |
RETICLE
Sharpshooter MOA is a ranging and holdover reticle using the Minute of Angle mathematical system. With the help of a ballistic calculator or a few basic formulas, you can use Sharpshooter to estimate the range to target, then hit it without adjusting your turrets using the holdover aiming cues.
MEASURE IT WELL
Other reticles give you one or two hash mark dimensions to use for range estimation. If the target size doesn’t match up, you must make your best guess based off those limited options. Sharpshooter MOA incorporates subtensions from 4 MOA all the way down to 0.5 MOA. Less guessing; more confidence.
HOLD IT OVER
With range to target established, you can use Sharpshooter’s holdover grid to shift your point of aim, compensating for both bullet drop and wind conditions without ever having to physically adjust the scope’s 0.25 MOA-per-click target turrets. The holdover grid extends 36 MOA down with precise wind hold dots extending to a maximum of 24 MOA to each side of center.
NEVER WRONG
Due to the optic’s First Focal Plane construction, the measurements or subtensions in Sharpshooter MOA are correct and true at all magnifications. You never have to worry about being at the “wrong” magnification to range estimate or use the holdover grid.
THE BOTTOM LINE
Sharpshooter MOA is compatible with any caliber. As just one example, using a 100 yard zero, Sharpshooter MOA will provide holdovers for a standard .308 Winchester rifle to hit accurately past 900 yards in 20 mph winds.
STANDARD MOA RANGING
In order to range targets or objects with Sharpshooter MOA, use the MOA ranging formula:
Target Size (inches) x 95.5” / Image Size in MOA = Range In Yards
In order to obtain an accurate range estimation, you need to know the size of the target in inches. Using either vertical or horizontal hash marks, measure the target dimensions in MOA as you view it through the scope. Multiply the target’s actual size in inches x 95.5”, then divide that result by your MOA target dimension observation to get the range to target in yards.
EXAMPLE #1:
Assuming this combatant is 6 feet [72 inches) tall, and his body length comprises 15 MOA in your reticle, how far away is he? 72 x 95.5” / 15 MOA = 460 Yards
USING BASIC HOLDOVERS
Example #2: Assume that you have ranged a target 400 yards away and your ballistic calculator or bullet trajectory chart indicates that the bullet will drop about 6 MOA at 400 yards. If you want to “dial for dope” you can turn the elevation turret up to 6 MOA and fire using the center of the crosshair. However, it is faster to leave the scope zeroed, abandon using the center aiming point, and count 6 MOA down on the crosshair’s hash marks, using the numbers on the right of the dot grid as a quick reference. Looking through the scope, you will appear to be aiming high of the target. Gravity will push down on the bullet as it flies the 400 yards to hit the target’s center of mass.
IN THE BOX
|
Scope |
|
Short and Tall Magnification Throw Fins |
|
Set Screw and Wrench for Throw Fin |
|
Flip Up Lens Caps |
|
Honeycomb Anti Reflective Device |
|
Scope Cloth |
|
Product Manual |
|
Reticle Manual |
|
3" Sunshade |
